SEL 1540 'Standard'

c1960





The SEL Standard is basically the single cylinder version of the Major. This is the third in size of their range of four stationary engines. Like the Major, the Standard is a neat, compact design and well made. Most of the comments for the Major also apply to the Standard.

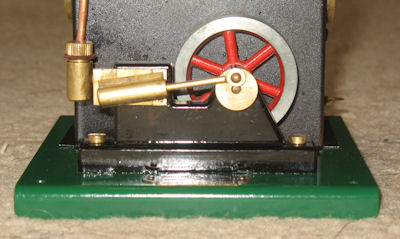

The steam feed from the top of the boiler has an in-line lubricator just before the single action oscillating cylinder. The main dimensions are: base - 4 3/4" square, boiler - 4" x 1 1/2" diam, cylinders - 3/16" x 3/8" stroke, flywheel 1 3/4" diam.

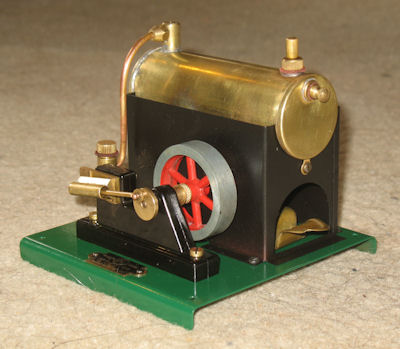

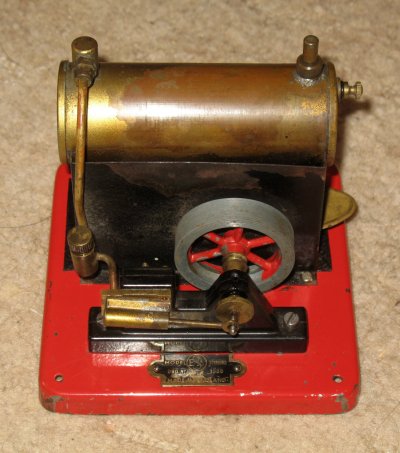

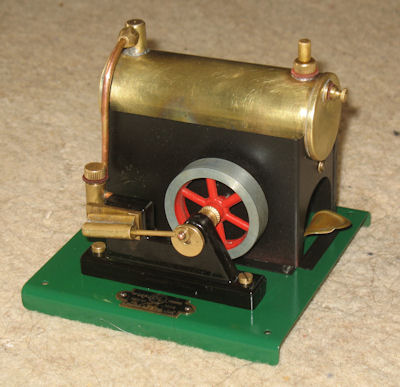

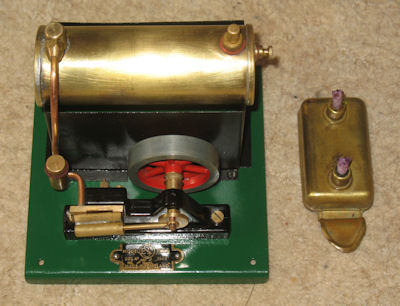

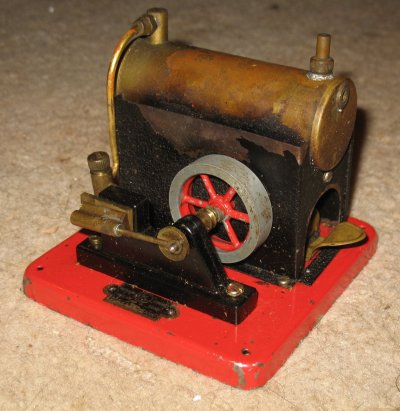

The example of this engine in my collection has the slightly less common two sided base. It has been restored to it's original colour scheme (as found, the base had been painted black). I have also repainted the firebox in heat resistant paint.

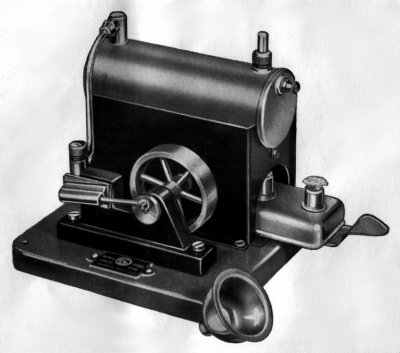

The drawing on the bottom left is taken from a 1950s SEL catalogue.

Make Model Made Description Cylinders Cylinder Type
SEL 1540 Standard c1960? Stationary 1 Single acting
Piston Diam mm Stroke mm Valve Type Boiler Type Fuel Mechanical Condition
5.5 9.5 Oscillating Cylinder Horizontal Meths Good
Cosmetic Condition Paintwork Packaging Purchased Purchase cost Additional cost
Good Restored
8/5/2010 45.51 5
