Sectioned Wilesco D16 Engine Unit

2007





This is one of a couple of steam toys that I have sectioned for demonstration purposes. This one is (was) the engine unit from a Wilesco D16. (see here for a whole model)

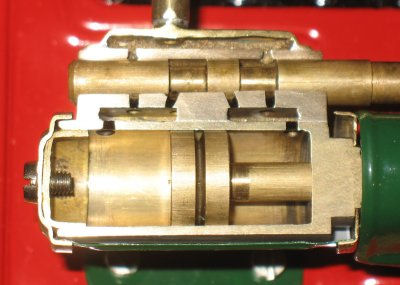

Only the cylinder and slide valve have been cut open to enable viewers to see what's inside. The workings of the valve linkage are visible without sectioning.

The sectioning was done mainly with a junior hacksaw, finishing the cut surfaces with a needle file and emery cloth. The thin sheet of the cylinder cover was cut with special shears. The piston and slide valve are, of course, fully functional (except that they are no longer steam tight!).

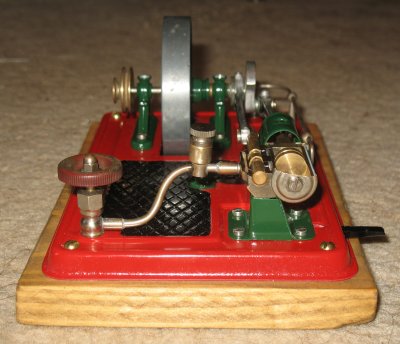

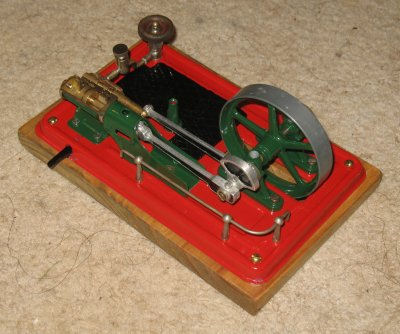

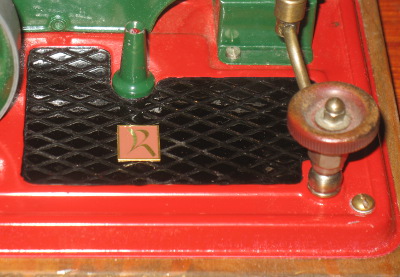

I have replaced the pulley on the crankshaft with a Meccano sprocket so that it can be motorised. The metal base is mounted onto a wooden plinth because the flywheel projects below it.

I have also sectioned a Mamod SE3, complete with boiler and it's fittings. (This can be seen here.)

Make Model Made Description Cylinders Cylinder Type
REW / Wilesco D16 (sectioned engine unit) 2007 Sectioned Stationary 1 Double acting reversible
Piston Diam mm Stroke mm Valve Type Boiler Type Fuel Mechanical Condition
13 13 Slip Eccentric Piston N/A
Restored & sectioned
Cosmetic Condition Paintwork Packaging Purchased Purchase cost Additional cost
Repainted & sectioned Repainted
2007 10.00
