HOME Collection Mamod

Mamod SP1

1979-?

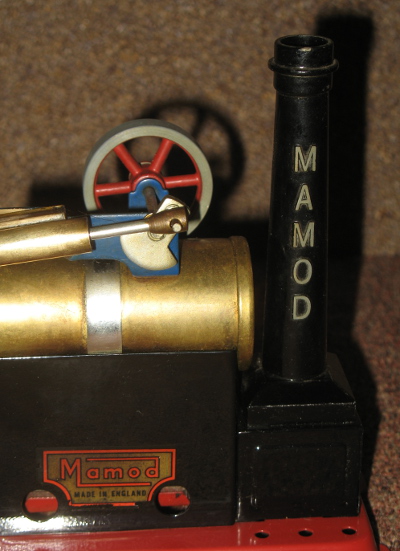

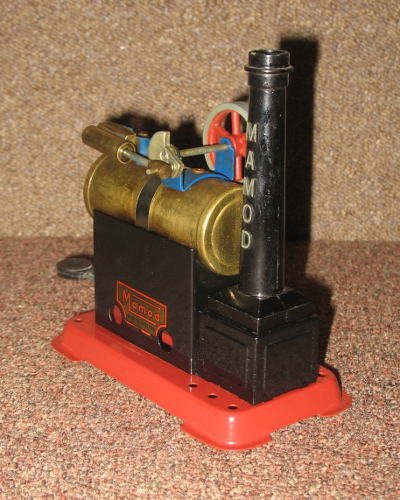

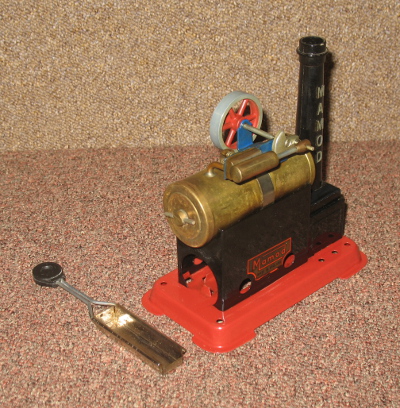

This is the model in the SP range that replaced the Minor 1. The engine and boiler are similar to the MM1 but with a blue painted frame. The main differences being a different base, base mounted chimney (standard on most of the SP range),

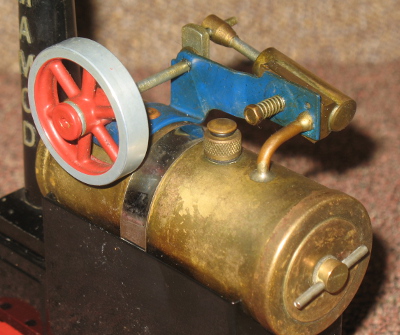

It is an overtype engine with everything mounted on top of the 1 1/2" diam x 3 1/2" boiler, including the 5/16" diam x 1/2" stroke cylinder, 1/4" safety valve and 1 1/2" diam spoked mazac flywheel. There is a water level overflow plug in one end of the boiler. The boiler end cap is too small for the sight glass fitted on most of the SP series. It has a solid fuel tablet burner.

The paintwork appears to be original and is in reasonably good condition.

Make Model Made Description Cylinders Cylinder Type
Mamod SP1 1979-? Stationary 1 Single acting
Piston Diam mm Stroke mm Valve Type Boiler Type Fuel Mechanical Condition
8 13 Oscillating Cylinder Horizontal Tablet Good
Cosmetic Condition Paintwork Packaging Purchased Purchase cost Additional cost
Good Original
15/4/2015 41.00
