Wilson (large)

c1948

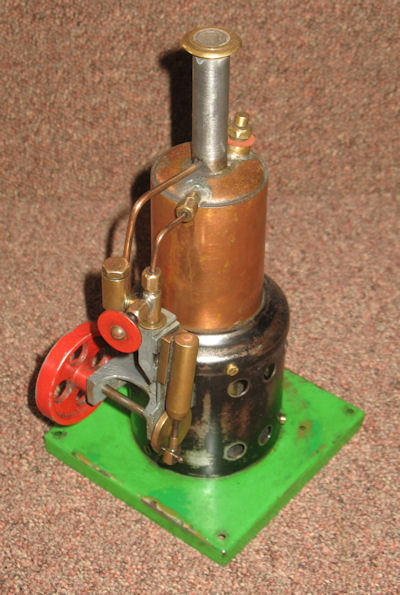

Not much is known about this maker (not by me, anyway). It appears that they made two models of steam engine. They were both vertical oscillating cylinder engines but different sizes and with differences in design. This is the larger of the two.

The copper boiler is 53mm diam x 75mm tall. It is mounted in top of the steel firebox, somewhat larger in diameter and housing a round two wick meths burner. The boiler has a single flue to the chimney. The slightly domed top has a safety valve but no whistle.

A short steam pipe, with a compression fitting on each end, feeds steam to a needle valve and simple lubricator on the top of the cylinder frame. The frame is an alloy casting integrating the port face and crank shaft bearings. I've seen another example of this same model in which this casting is brass. I assume they are both original as it was quite common for makers to use whatever materials were cheaply available at this period.

The cylinder is a traditional oscillating type made in brass. It is 8.7mm bore x 20mm stroke. It is connected to a disk crank on one end of the crankshaft, on the other end of which is a 51mm diameter flywheel. The crankshaft diameter is 4mm which is standard for Meccano.

This example was mounted on a substantial wooden base with a nice brass name plate when I bought it. This was not original and was obviously much newer than the engine. It was nice but a bit OTT so I have removed it. General condition is fair for it's age. The paintwork appears to be original and is worn but not flaking.

Make Model Made Description Cylinders Cylinder Type
Wilson Large late 1940s? Stationary 1 Single acting
Piston Diam mm Stroke mm Valve Type Boiler Type Fuel Mechanical Condition
8.7 20 Oscillating cylinder Vertical Meths Good
Cosmetic Condition Paintwork Packaging Purchased Purchase cost Additional cost
Fair Original?
Mar 2012 114.00
