Microcosm M6-B

2013?

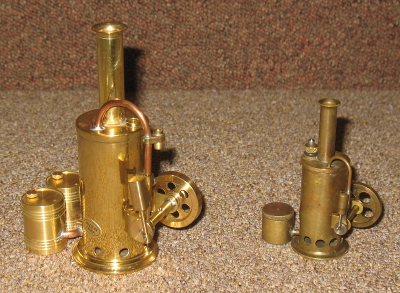

Microcosm is a relative newcomer to the scene and this is one of their simpler engines. It is basically a scaled up version of the Jenny Wren but with detail differences.

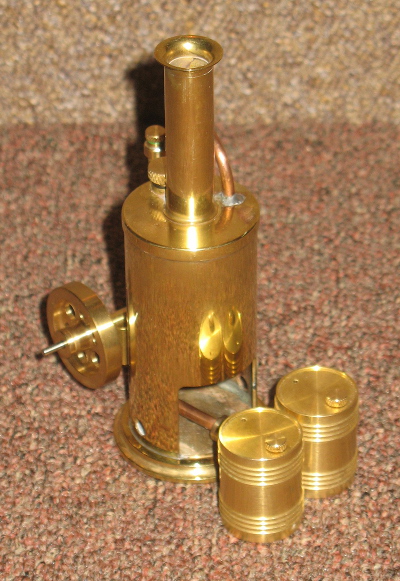

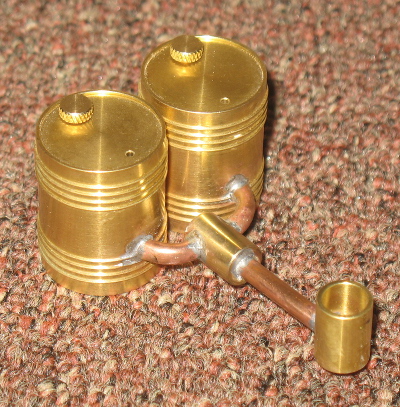

The overall height is 117mm. The vertical boiler is 33mm diameter and a bit more than that in height. (Although the outer casing being integral with the firebox, it looks bigger.) It has a single flue tube, integral with the chimney. The recommended water level is 15ml. The burner is fitted with twin meths tanks, each 21mm diameter and 25mm high. Pipes from the two tanks are combined and fed via a single pipe to a wick under the boiler. There is no safety valve fitted.

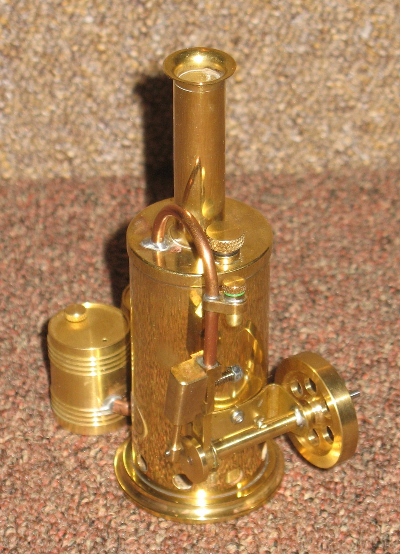

Steam is fed to the single acting oscillating cylinder via a short pipe, to which a tiny displacement lubricator is attached. The cylinder is 4.5mm bore with a stroke of about 8mm. This drives the 29mm dia. flywheel at a fairly high speed with no load. There is a small pulley attached to the flywheel. There's not much torque but plenty of revs so, with suitable gearing, the power would not be insignificant.

The engine is constructed mainly of brass with copper pipes and a few small parts in steel.

Make Model Made Description Cylinders Cylinder Type
Microcosm M6-B 2013? Stationary 1 single acting
Piston Diam mm Stroke mm Valve Type Boiler Type Fuel Mechanical Condition
4.5 8 oscillating cylinder vertical single flue meths good
Cosmetic Condition Paintwork Packaging Purchased Purchase cost Additional cost

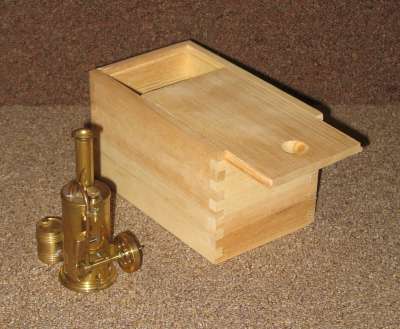

good N/A Wooden box 2013 41
