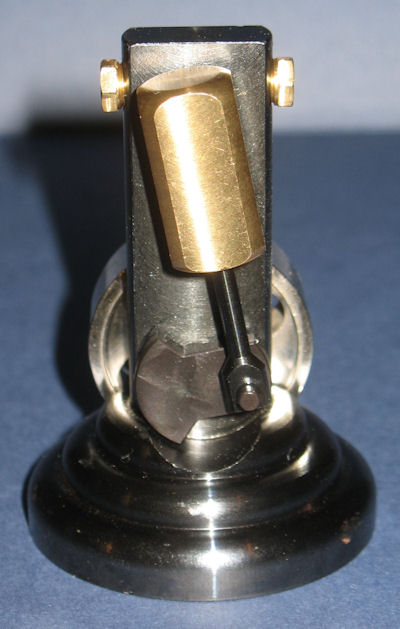

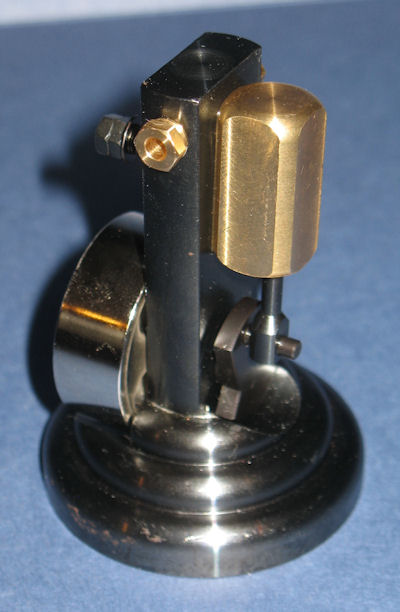

This neat little engine was sold by Chronos Engineering Supplies who describe it as the "Bittleston Steam Engine". It was made by Bittleston Ltd, in a single batch of 1000, to show off the capabilities of their automated equipment. Some were given to key customers and some to Chronos for resale.
It is 100% machined metal construction. The cylinder and pipe fittings are brass. The flywheel is chromed steel. The rest is all blackened steel. It is very solidly built (overall height is only 2 3/4" but it weighs 12 oz!).

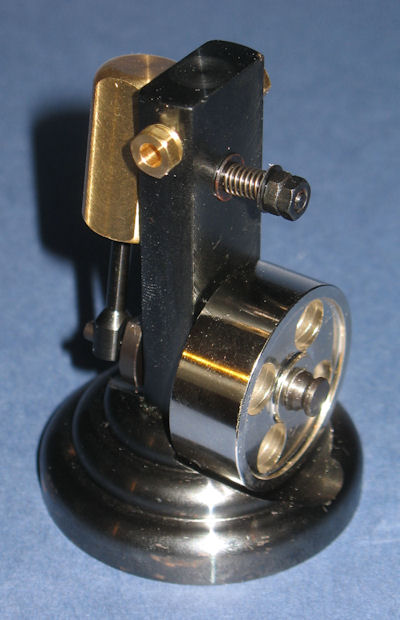

The single acting oscilating cylinder is 1/4" bore x 1/2" stroke, the bore being drilled into a 1/2" square block. The flywheel is 1 1/4" diameter and 1/2" thick; solid apart from 4 holes.
| Make | Model | Made | Description | Cylinders | Cylinder Type |
|---|---|---|---|---|---|
| Bittleston? (sold by Chronos) | Unknown | 2011 | Stationary | 1 | Single acting oscillating |
| Piston Diam mm | Stroke mm | Valve Type | Boiler Type | Fuel | Mechanical Condition |
|---|---|---|---|---|---|
| 6.4 | 12.7 | Oscillating cylinder | N/A | N/A | Good |
| Cosmetic Condition | Paintwork | Packaging | Purchased | Purchase cost | Additional cost |
|---|---|---|---|---|---|
| Good | N/A | May 2011 | £29.73 |
