Weeden 400


This is an interesting arrangement of vertical oscillating cylinder engine.

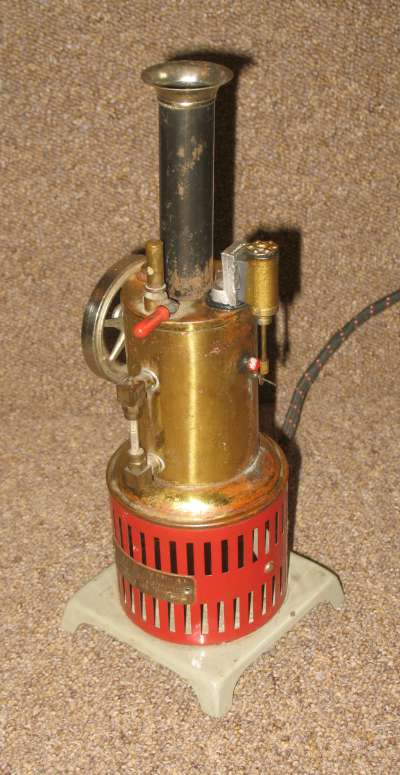

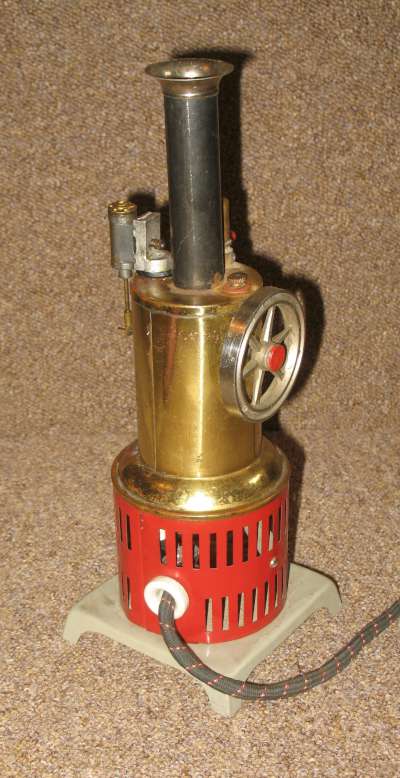

The boiler is a vertical seamed brass type, 3.75" high x 2.25" diameter. It is heated by a 115V electric element. It has a dummy chimney which is purely cosmetic. It has a whistle and a filler cap, but no safety valve. It has a glass tube type water gauge.

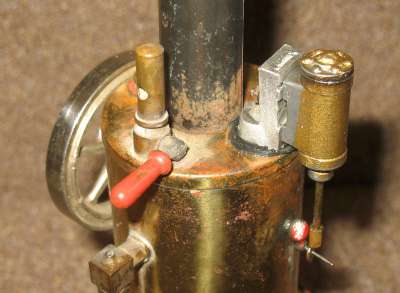

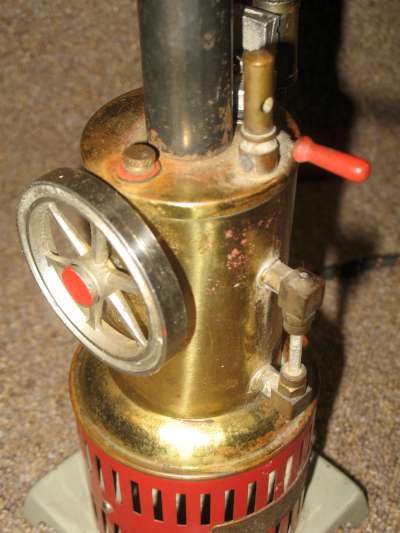

The integral engine bracket and port face is attached to the top of the boiler using a bayonet type fixing. The one fitted is a replacement, made of aluminium (?). The cylinder is a typical Weeden oscillating cylinder made of lead. It is single acting and, unusually, the active end is at the piston rod end. It is 5/16" bore x 7/16" stroke. The crankshaft is mounted in a tube going through the boiler, with a simple crank made of lead at one end and a 2.25" diameter flywheel at the other, also made of lead.

When bought, the cylinder and it's port face block, were missing. A replacement block was made by a good friend and a second hand cylinder was obtained at the same time. The rest is in reasonably good original condition.

Make Weeden
Model 400
Made 1930s
Description Stationary
Cylinders 1
Cylinder Type Single acting
Piston Diam mm 8
Stroke mm 11
Valve Type Oscillating cylinder
Boiler Type Vertical
Fuel 115V electric
Mechanical Condition Good
Cosmetic Condition Fair
Paintwork Original
Purchased 5/5/2016
Purchase cost 25.24
Additional spend
