Stuart Turner Steam Feed Pump

2010s?




This is a direct acting steam powered boiler feed pump. The water pump is driven directly by the piston rod of a double acting cylinder, with no rotating parts.

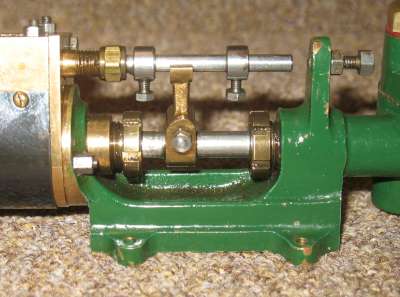

The cylinder is 1/2" bore x approx. 3/4" stroke. It is controlled by a slide valve. The valve rod is fitted with a pair of tappets, which are pushed back and forth by a push rod attached to the piston/pump rod. The pump bore is 1/4", the water flow being controlled by two non-return valves.

At the time of writing, it works on both air and steam, but not consistently.

Make Stuart Turner
Model Steam Feed Pump
Made 2010s?
Description Steam powered feed pump
Cylinders 1
Cylinder Type double acting
Bore mm 12.7
Stroke mm 19.1
Valve Type Slide
Boiler Type N/A
Boiler Diam mm N/A
Boiler length/height mm N/A
Fuel N/A
Mechanical Condition Poor
Cosmetic Condition Good
Paintwork Original
Packaging
Purchased 14 April 2019
Purchase cost 422
Additional spend
