Starpower Flame Licker

2014





This type of engine is known by various names; most commonly flame licker, flame gulper and vaccuum engine. It works by sucking in hot gasses directly from an external flame which are then cooled rapidly on the power stroke.

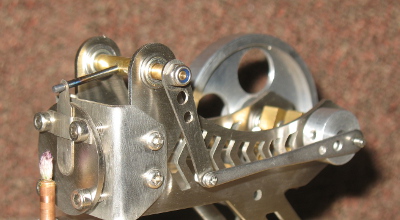

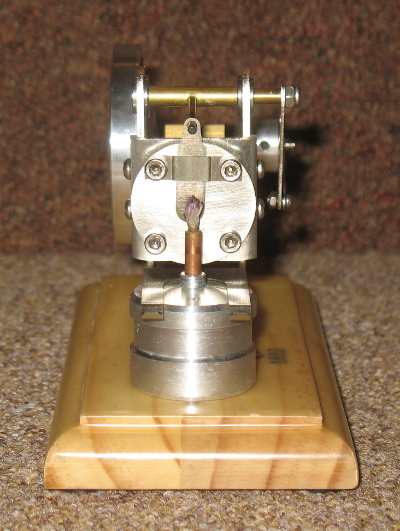

It has a small meths burner to provide a small flame, Thisw is positioned close to a port in the end of the cylinder. The port is opened for the inlet stroke, sucking in hot gasses from the flame. The port is then closed for the return stroke, during which the gasses cool down and create a partial vaccuum. The gasses are exhausted at the very end of the stroke. The valve over the port is a thin strip of metal that is loosely suspended over the port. During the power stroke, it is held against the port face by the partial vaccuum. At the end of the stroke, when the vaccuum disappears, the valve is pushed away from the port face, allowing the remaining gasses to escape.

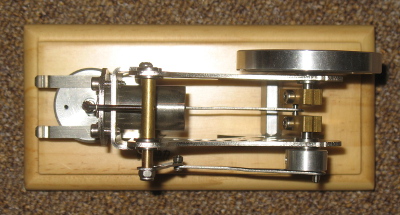

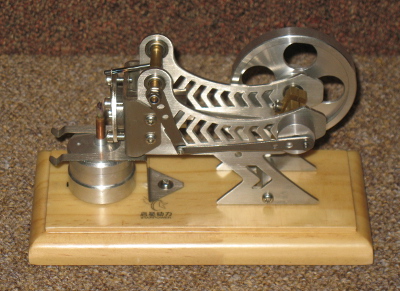

The valve is operated by linkage from a return crank on the crank shaft. The single cylinder is 12mm bore x 9mm stroke. The cylinder is steel and the piston is brass. The main frame appears to be aluminium, mounted on a wooden base.

The engine was purchased new by me. It is rather temperamental in operation, needing constant adjustment of the flame position relative to the port, and stops frequently. Considering the size of the cylinder, compared with most other flame licker engines I've seen, I don't think I can expect much better performance. The reliability might improve with practice.

Make Starpower
Model Flame Licker
Made 2014
Description Flame Licker engine
Cylinders 1
Cylinder Type single acting
Piston Diam mm 12
Stroke mm 9
Valve Type slide
Boiler Type N/A
Fuel meths
Mechanical Condition good
Cosmetic Condition good
Paintwork N/A
Packaging
Purchased 13/8/2014
Purchase cost 52
Additional cost
