Philcraft Penny Engine

2016







Another little gem from Phil Gravett (Phicraft).

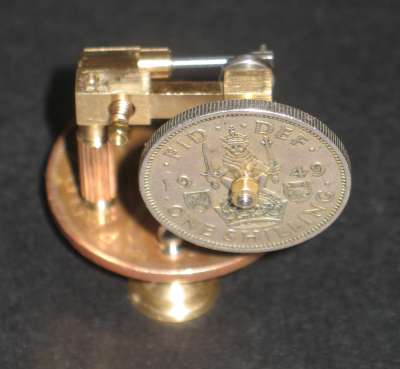

This is a simple engine using an old UK penny for the base. This example was customised by Phil using a shilling for the flywheel, instead of the normal turned brass one. The shilling is dated 1949 (my birth date).

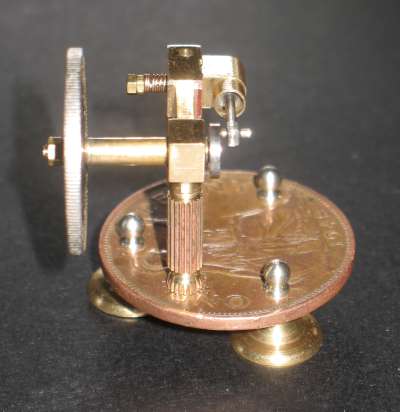

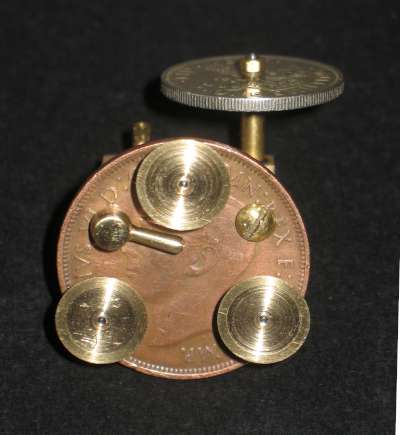

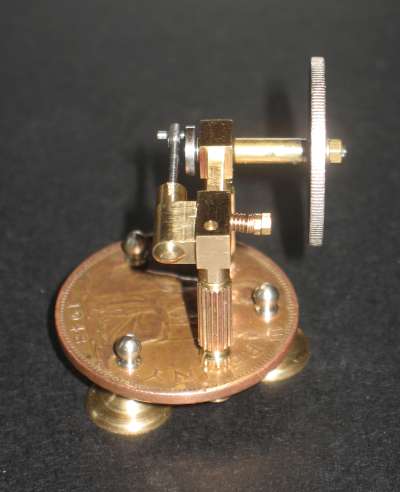

It has a tiny single acting oscillating cylinder, 1/8" bore x 1/8" stroke. The engine block is supported on two ornate brass pillars, one of which carries the steam feed. Exhaust is through a hole in the top of the block. The pillars are mounted on a 1948 UK penny, with the steam inlet out of sight underneath. The penny is supported on three brass feet. The crankshaft has a 1949 UK shilling fitted as a flywheel.

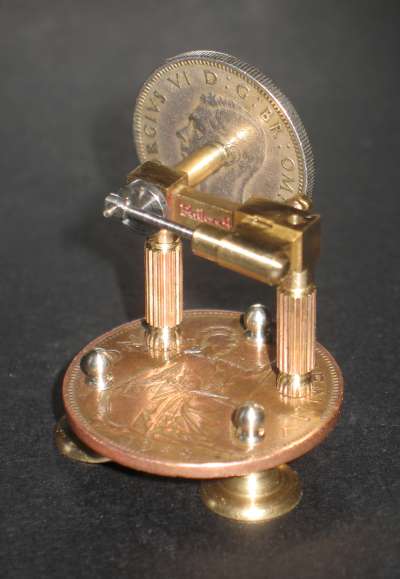

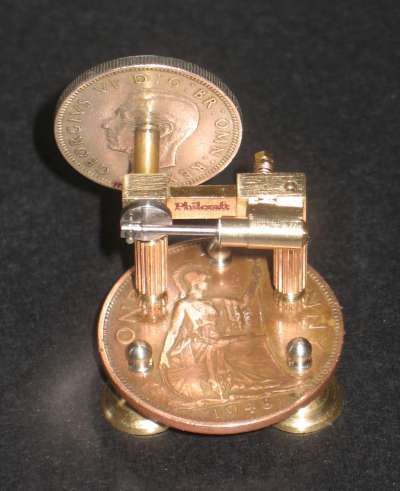

Unusually for Philcraft, the name is engraved on the engine block.

Make Philcraft
Model Penny Engine
Made 2016
Description Miniature stationary engine
Cylinders 1
Cylinder Type single acting
Piston Diam mm 3.2
Stroke mm 3.2
Valve Type Oscillating cylinder
Boiler Type N/A
Fuel N/A
Mechanical Condition Good
Cosmetic Condition Good
Paintwork N/A
Packaging
Purchased 17/3/2016
Purchase cost 80
Additional cost
