Philcraft Penny Engine with built in USB compressor

2022

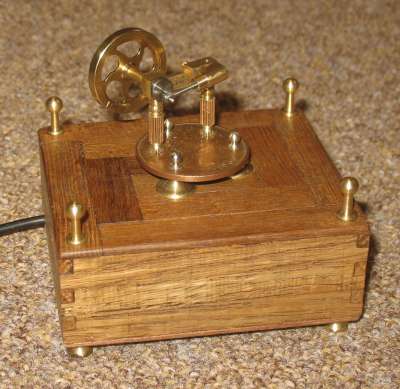

This is a version of Philcraft's Penny Engine which has it's own USB (5v) powered air compressor built into the base. It is a simple engine using an old UK penny for the base. This example has the normal turned brass flywheel. The penny is dated 1962.

It has a tiny single acting oscillating cylinder, 3mm bore x 4mm stroke. The engine block is supported on two ornate brass pillars, one of which carries the air feed. Air is supplied by a miniature air compressor inside the wooden base. The compressor is powered by a 5v DC supply from a standard USB socket. Exhaust is through a hole in the top of the block. The pillars are mounted on a 1962 UK penny, which is supported on three brass feet fixed to the wood base.

Make Philcraft
Model Penny Engine
Made 2022
Description Miniature stationary engine with built in air compressor
Cylinders 1
Cylinder Type single acting
Piston Diam mm 3
Stroke mm 4
Valve Type Oscillating cylinder
Boiler Type N/A
Fuel 5v DC (USB)
Mechanical Condition Good
Cosmetic Condition Good
Paintwork N/A
Packaging
Purchased 19/7/2022
Purchase cost 165
Additional cost
