Mastrand Roller

c late 1950s?








The story goes that this is the model that Malins saw at an exhibition and decided he could do better, which led to the Mamod SR1.

The boiler is about 4" long x 1 1/4" diameter, located inside an outer casing, 1 5/8" diameter. The original burner is missing but I assume it should be a meths burner.

Steam is fed directly to the top of the port face block of a single acting oscilating cylinder. The cylinder is 13/32" bore x 11/16" stroke. The crankshaft has a small disk crank at one end and a 1 7/8" diameter mazac flywheel at the other. The flywheel incorporates an 11/32" pulley, which drives the near side wheel through a spring type drive band. Thye wheel is 3" diameter. The front roll is 1 5/8" diameter x 2" wide, split in two halves in the traditional manner.

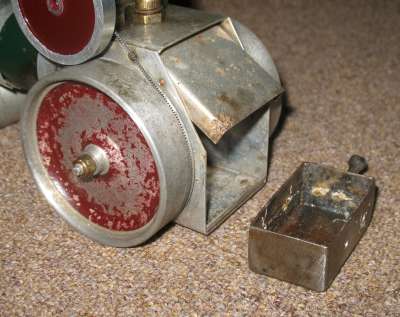

As acquired, the Mazac flywheel was suffering major rot, which was fouling the wheel, preventing it running. The safety valve was siezed solid. A new flywheel has been made in aluminium and I have repaired the safety valve, fabricating a new plunger. The paintwork appears to be original but is flaking badly. The wheels and bodywork are aluminium, which doesn't take paint too well. The original burner is missing and has been placed by a home made bent steel tray. The last photo on the left shows the condition of the original flywheel.

Make Mastrand
Model Roller
Made late 1950s?
Description Steam Roller
Cylinders 1
Cylinder Type single acting
Piston Diam mm 10.3
Stroke mm 16
Valve Type Oscillating cylinder
Boiler Type Horizontal
Boiler Diam mm 32
Boiler length/height mm 102
Fuel ?
Mechanical Condition Good
Cosmetic Condition fair
Paintwork mostly original
Packaging
Purchased 14/1/2018
Purchase cost 105
Additional spend 20
