Kleinemeier Vertical SD02

2017






This is a simplified version of the vertical engine, without the belt driven countershaft. It has a round pressed steel base.

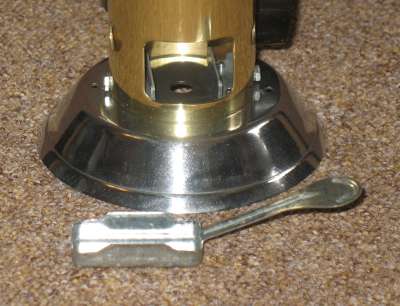

It is supplied with a standard Esbit burner.

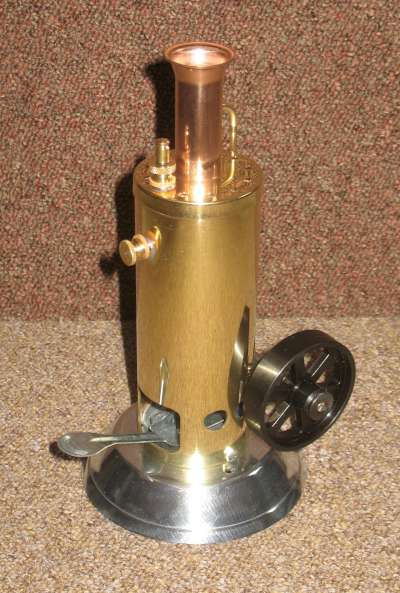

The boiler is 50mm diameter x approx 80mm high, with a single centre flue. It has an overflow type water level indication and a safety valve.

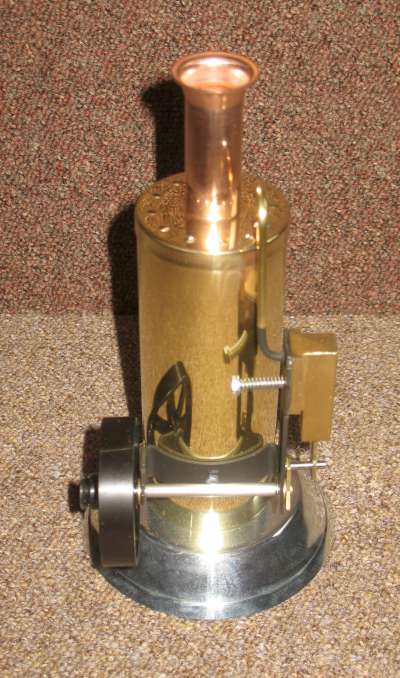

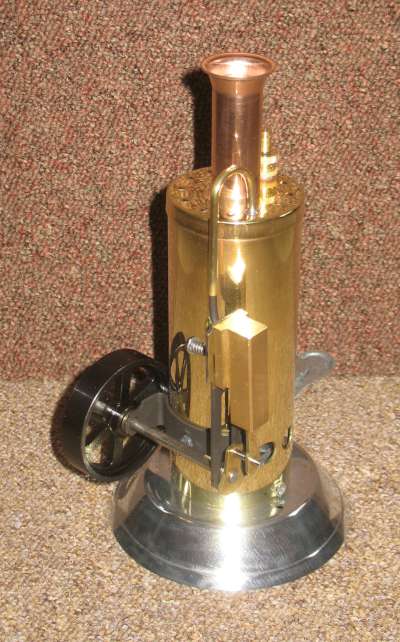

The steam is fed directly to the back of the engine frame. The single acting oscillating cylinder is 8mm bore x 20mm stroke. The crankshaft has a 53mm diameter flywheel incorporating a 12mm diameter pulley.

The whole is fitted to a pressed nickel plated steel base.

Make Kleinemeier
Model Vertical SD02
Made 2017
Description Stationary
Cylinders 1
Cylinder Type single acting
Piston Diam mm 8
Stroke mm 20
Valve Type Oscillating cylinder
Boiler Type Vertical single flue
Boiler Diam mm 50
Boiler length/height mm 80
Fuel Tablets
Mechanical Condition Good
Cosmetic Condition Good
Paintwork Original

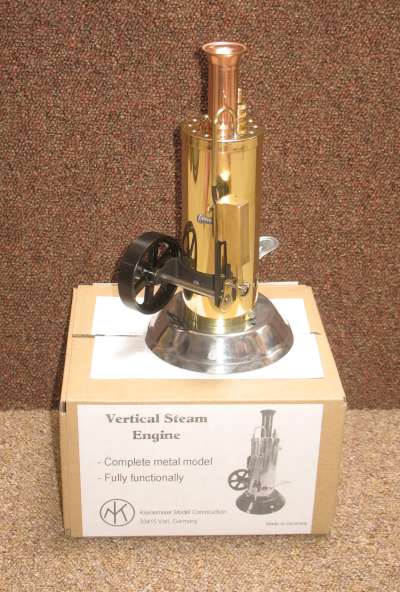

Packaging Cardboard box
Purchased 11/12/2017
Purchase cost 101.13
Additional spend
