IGLA no 02?

C 1948

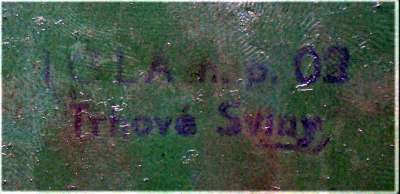

IGLA is a name I'm not familiar with. There is an indistinct marking on the base that says "IGLA n.o. 02 Trhové Sviny". My guess is that n.o. 02 is a model number.

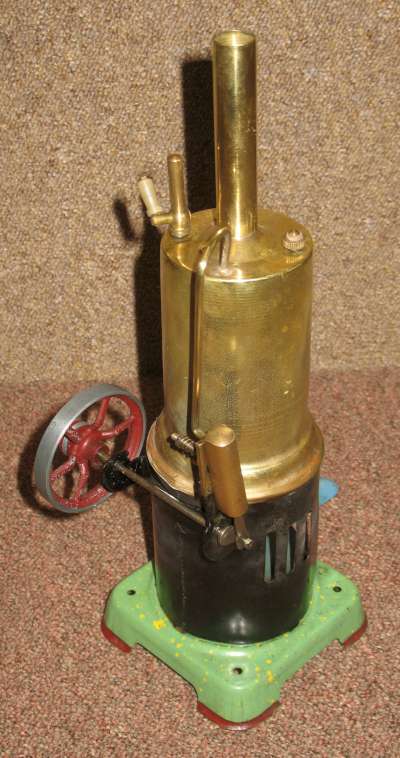

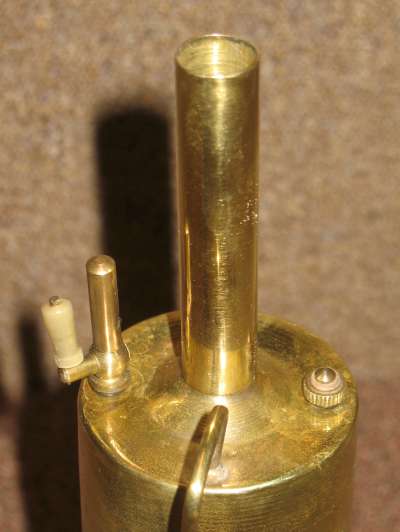

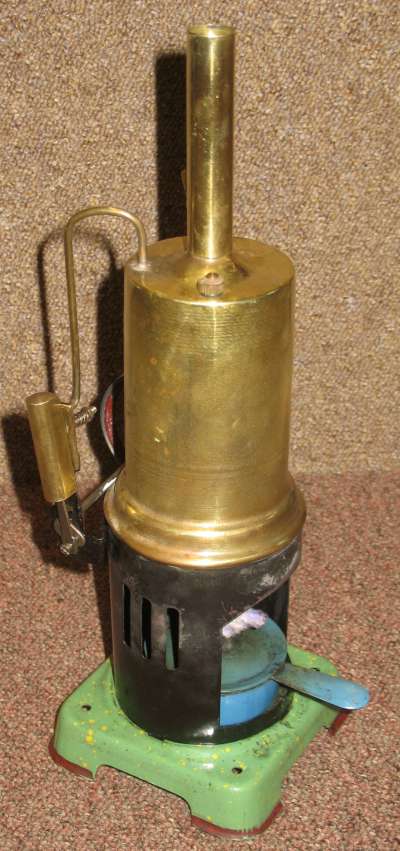

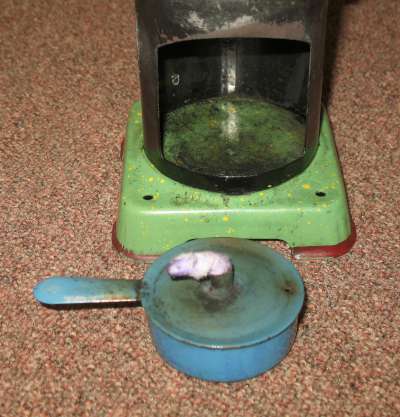

The engine is a simple vertical oscillating cylinder type. The boiler is a 61mm diameter x 87mm high simple pot boiler with a safety valve, whistle and dummy chimney. The burner is a single wick meths type (I'm not sure if it's original.)

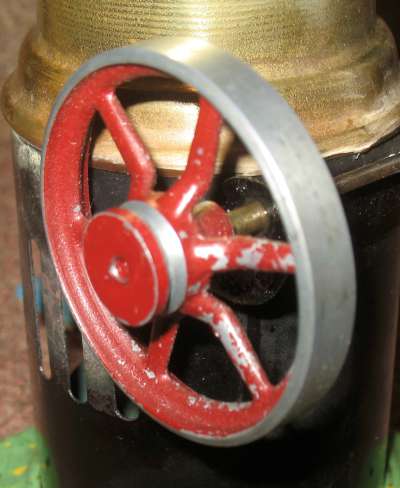

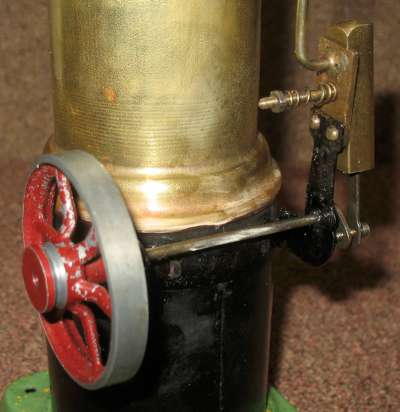

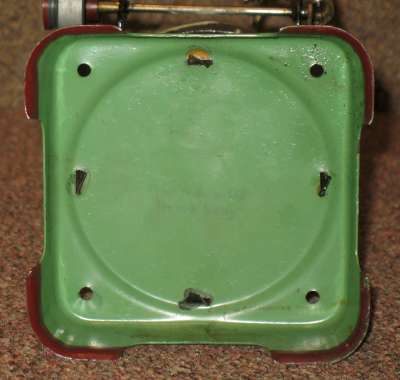

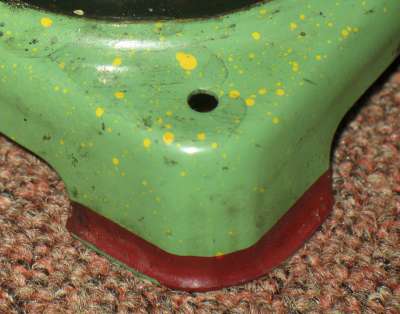

Steam is fed directly to the back of the port face of a single acting oscillating cylinder, 7mm bore x 14mm stroke. The crankshaft has a 60mm diameter flywheel, which has rather distinctive curved spokes. The base is a square pressed steel type, painted green with yellow splatterings (apparently original).

Condition is generally good. It works well both on air and in steam.

Make IGLA
Model no 02?
Date Made ?
Description Stationary
Cylinders 1
Cylinder Type single acting
Bore mm 7
Stroke mm 14
Valve Type Oscillating cylinder
Boiler Type Vertical
Boiler Diam mm 61
Boiler length/height mm 87
Fuel Meths
Mechanical Condition Good
Cosmetic Condition Good
Paintwork Original
Packaging
Purchased 25/5/2020
Purchase cost £120
Additional spend
