Lutz Hielscher Steam Automobile 10090

2010s?

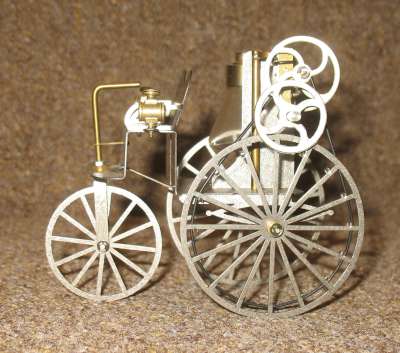

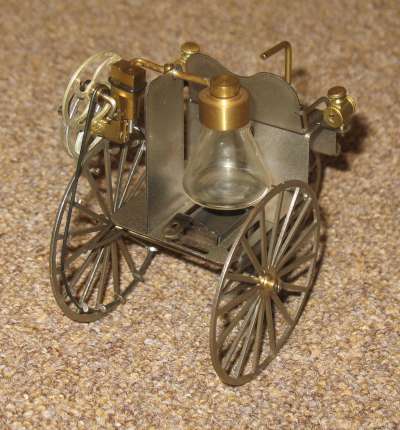

This is a miniature three wheeled car of typical Lutz Hielscher styling.

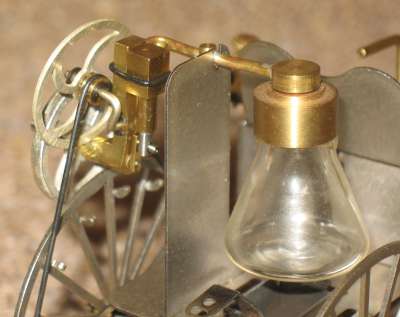

The boiler is a typical Hielscher glass flask, 25mm diameter x 35mm high, heated by a small solid fuel tablet tray. The steam is fed directly to the back of the port face of the standard Hielscher oscillating cylinder; 3mm bore x 7.5mm stroke.

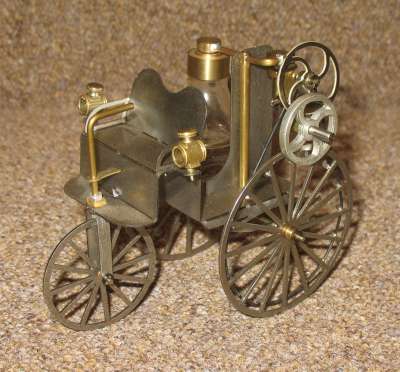

The crankshaft has a 23mm diameter spoked flywheel and a friction drive to a second shaft. The second shaft has a belt drive directly to one of the rear wheels. The 60mm diameter wheel has pins around it's perifery to take the belt, rather than a pulley. The single front wheel is steerable with a tiller.

The burner tray is missing, but it is a common size with other Hielscher models that I have.

Make Lutz Hielscher
Model Steam Automobile 10090
Made 2010s?
Description Three wheeled car
Cylinders 1
Cylinder Type single acting
Bore mm 3
Stroke mm 7.5
Valve Type Oscillating cylinder
Boiler Type Glask flask
Boiler Diam mm 25
Boiler length/height mm 35
Fuel Tablet
Mechanical Condition Good?
Cosmetic Condition Fair
Paintwork N/A
Packaging
Purchased 16/11/2018
Purchase cost 39
Additional spend
